Get least RMSD

Lets load a small molecular system with a 5000 frames trajectory to show how MolSysMT gets the least RMSD over a reference frame.

h5_file = msm.systems['pentalanine']['traj_pentalanine.h5']
molecular_system = msm.convert(h5_file)

msm.info(molecular_system)

form	n_atoms	n_groups	n_components	n_chains	n_molecules	n_entities	n_peptides	n_structures
molsysmt.MolSys	62	7	1	1	1	1	1	5000

time = msm.get(molecular_system, element='system', time=True)

Least RMSD

The RMSD value is not an observable that depends only on the internal geometry of a molecular system. A molecular system can have a frozen geometry but suffering translations or rotations relative to the reference the RMSD varies. Given this frozen geometry and the reference there exist a unique translation and rotation that, combined, minimizes the RMSD. If we want to use the RMSD as a metric to characterize how far two peptide or protein conformations are, the translation and rotation that makes the rmsd minimal needs to be found. Thereby, MolSysMT implements the algorithm proposed by Coutsias, Evangelos A., Chaok Seok, and Ken A. Dill in their work “Using quaternions to calculate RMSD” [1] to obtained the least RMSD. The algorithm is implemented behind the method molsysmt.least_rmsd() with the same input arguments as molsysmt.rmsd(). Let’s see the comparison of both methods when the observables are obtained for every frame of a trajectory with respect to the same reference:

lrmsd = msm.structure.get_least_rmsd(molecular_system, selection='backbone', structure_indices='all', reference_structure_index=0)
rmsd = msm.structure.get_rmsd(molecular_system, selection='backbone', structure_indices='all', reference_structure_index=0)

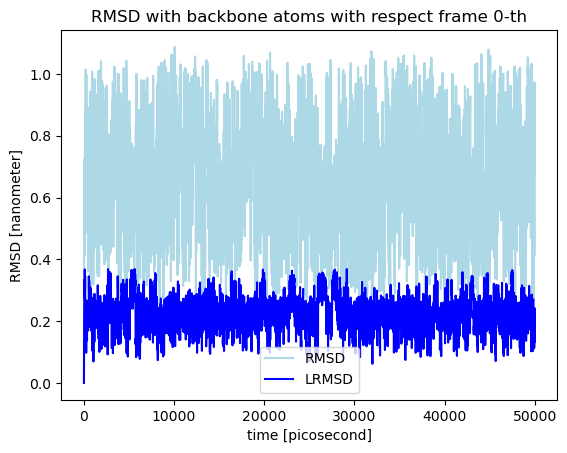

plt.plot(time, rmsd, color='lightblue', label='RMSD')
plt.plot(time, lrmsd, color='blue', label='LRMSD')
plt.xlabel('time [{}]'.format(puw.get_unit(time)))
plt.ylabel('RMSD [{}]'.format(puw.get_unit(rmsd)))
plt.title('RMSD with backbone atoms with respect frame 0-th')
plt.legend()
plt.show()

/home/diego/Myopt/miniconda3/envs/MolSysMT@uibcdf_3.12/lib/python3.12/site-packages/matplotlib/cbook.py:1345: UnitStrippedWarning: The unit of the quantity is stripped when downcasting to ndarray.
  return np.asarray(x, float)

---

[1] Coutsias, Evangelos A., Chaok Seok, and Ken A. Dill. “Using quaternions to calculate RMSD.” Journal of computational chemistry 25, no. 15 (2004): 1849-1857
