%load_ext autoreload
%autoreload 2

import molsysmt as msm
import numpy as np
import matplotlib.pyplot as plt

Get center#

get_geometric_center#

molecular_system = msm.systems['pentalanine']['traj_pentalanine.h5']
molecular_system = msm.convert(molecular_system, to_form='molsysmt.MolSys')

center = msm.structure.get_center(molecular_system)

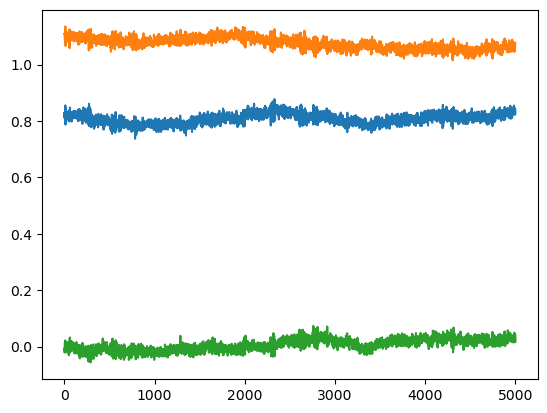

plt.plot(center[:,0,0])
plt.plot(center[:,0,1])
plt.plot(center[:,0,2])
plt.show()

MOLSYSMT WARNING | UnitStrippedWarning: The unit of the quantity is stripped when downcasting to ndarray.
../../../../_images/30e79003996ff2514c6f4acd113f69bd5104d7c3c1a3830a9a78cc0c15a217ba.png
center_group_0 = msm.structure.get_center(molecular_system, selection='group_index==0')
center_group_1 = msm.structure.get_center(molecular_system, selection='group_index==1')
distance_groups = msm.structure.get_distances(center_group_0, molecular_system_2=center_group_1)

distance_groups_2 = msm.structure.get_distances(molecular_system, selection='group_index==0', center_of_atoms=True,
                                                selection_2='group_index==1', center_of_atoms_2=True)

np.allclose(distance_groups, distance_groups_2)

True

get_center_of_mass#

#center = msm.structure.get_center_of_mass(molecular_system, selection='group_index==0')

get any weighted center#

list_CAs = msm.select(molecular_system, selection='atom_name=="CA"')
n_atoms_CAs = len(list_CAs)

center = msm.structure.get_center(molecular_system, selection=list_CAs, weights=np.ones(n_atoms_CAs))

center
Magnitude
[[[0.7867356538772583 1.1155330538749695 0.047727906703948976]] [[0.851609742641449 1.072055160999298 -0.03810365442186594]] [[0.7814877390861511 1.0652814269065858 0.01822875738143921]] ... [[0.7735005855560303 1.0574942529201508 0.03820017240941524]] [[0.8885262370109558 1.0916598916053772 0.09517061822116375]] [[0.7641647219657898 1.04406898021698 -3.3903121948242185e-05]]]
Unitsnanometer
